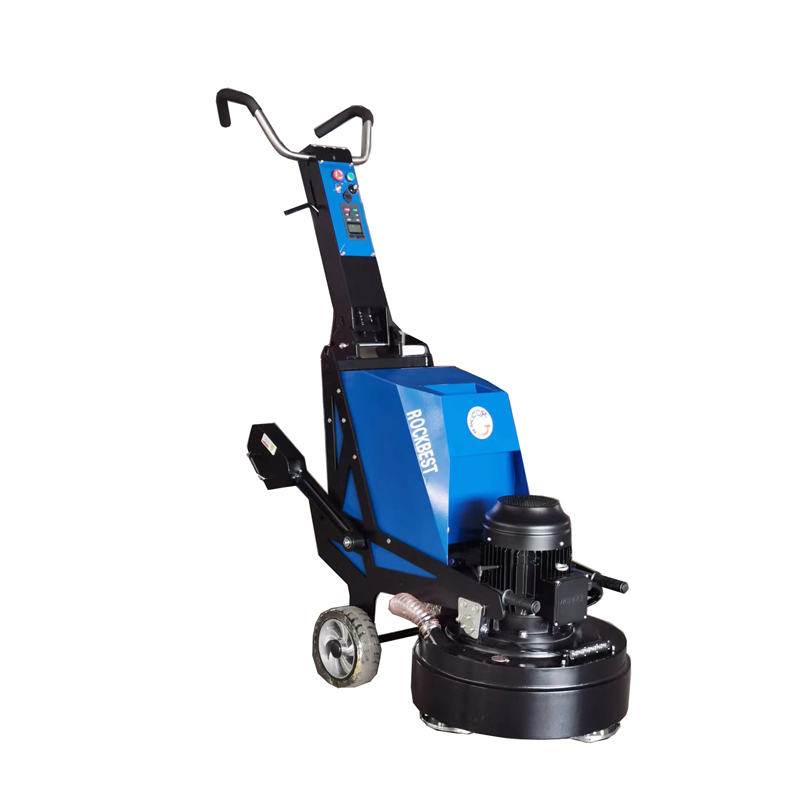

3 plates planetary concrete grinder

  • Product Item: 3P-G460/650/750
  • Category: Floor Grinding Machine
  • Views: 3392
  • Product Manual:3 plates planetary concrete grinder
  • SPECIFICATION
    Model 3P-G460 3P-G650 3P-G750
    Voltage 220V/380V 220V/380V 220V/380V
    Motor 4KW 7.5KW 11KW
    Inverter 5.5KW 11KW 15KW
    main plate speed 50-350rpm 50-350rpm 50-350rpm
    planetary plate speed 0-1800rpm 0-1800rpm 0-1800rpm
    grinding plate diameter 200mm*3 230mm*3 250mm*3
    working area 460mm 650mm 750mm
    water tank 40L 40L 40L
    weight 170KG 260KG 340KG

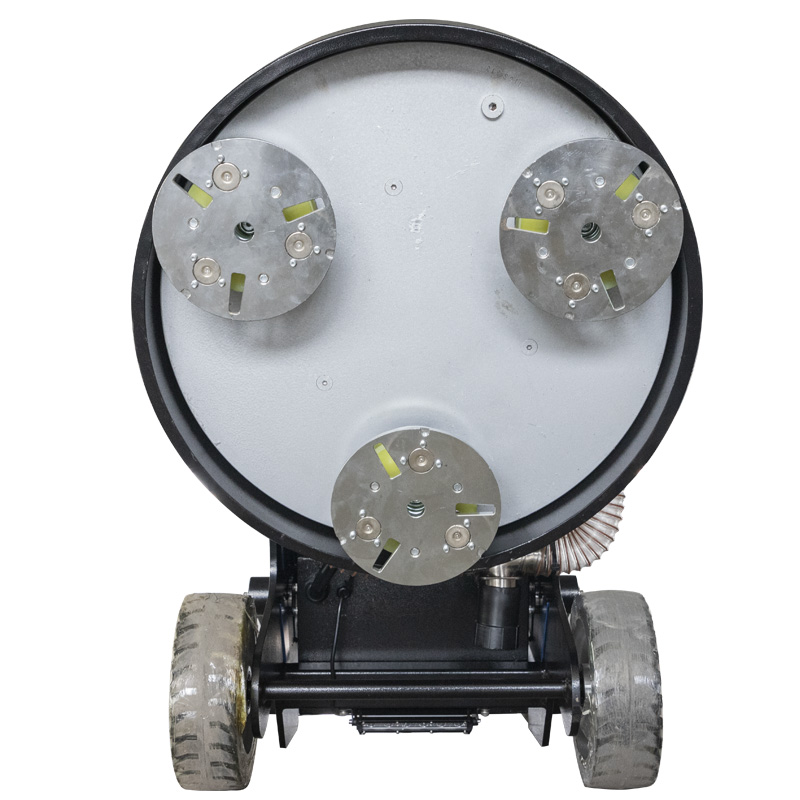

    1. planetary counter rotation system for excellent grinding and polishing surfaces

    2. completely  gear driven system without belts for longer lifetime and the heavy duty gear box is free of maintenance forever

    3. Gears adopt low carbon alloy steel with osmotic hardening and precision machining with longer lifetime and lower noise

    4. Double oil seales and specially proceed shafts greatly avoid the risk of oil leaking

    5 adopt aluminum motor for better heat dissipation and strong power

    6. wet and dry grinding and polishing for concrete, marble, granite and terrazzo

    7. comfortable operation with 360 degrees adjustable handle

    8. dust extraction skirt provides dust free operation when use with longopac dust extractor

    9. innovative quick shift plate with manetics and velcro pad holder for metal and resin diamond tools
