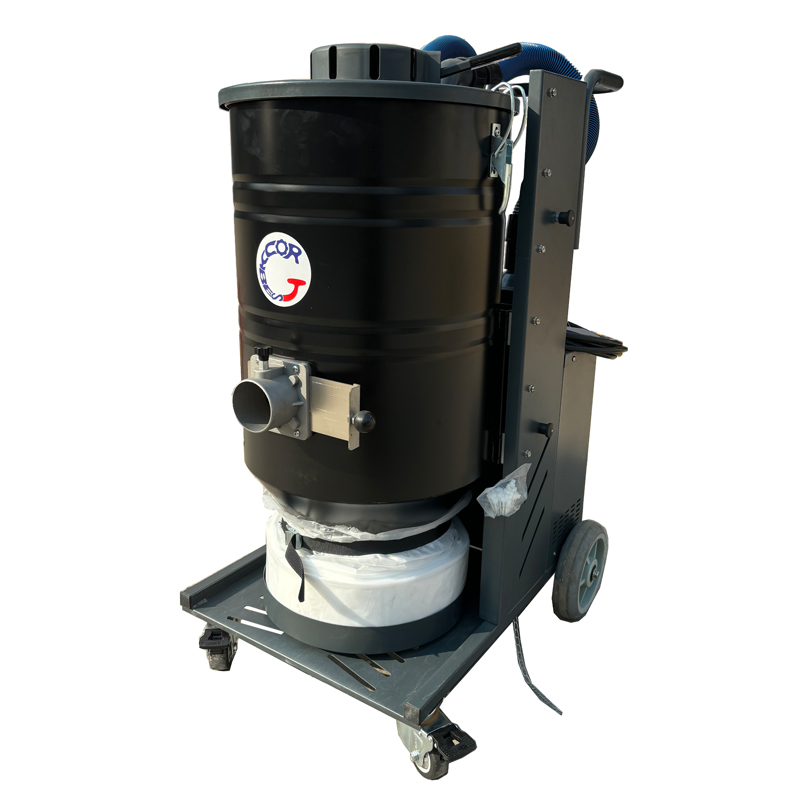

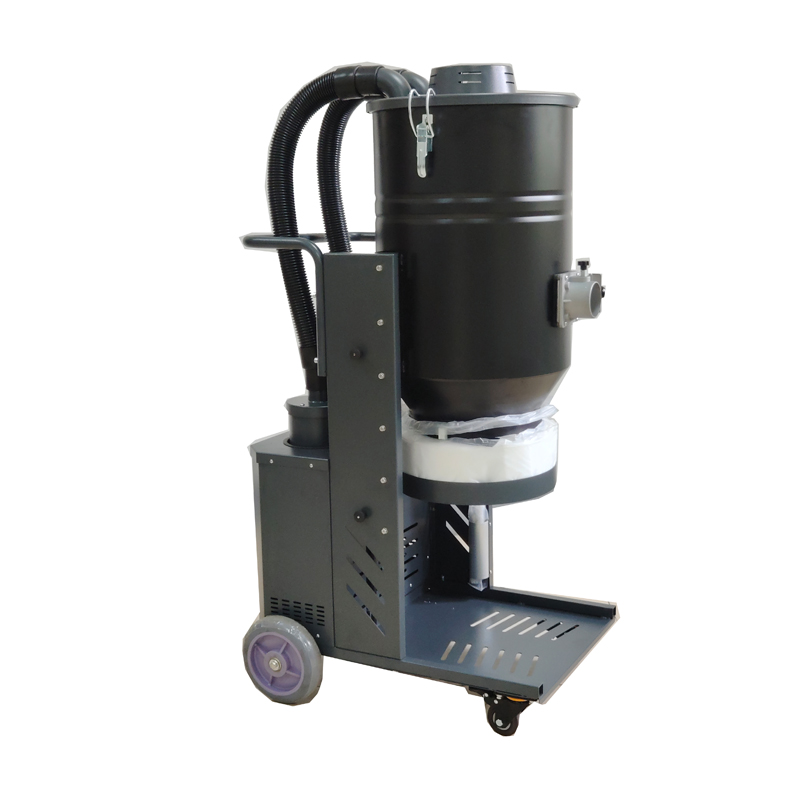

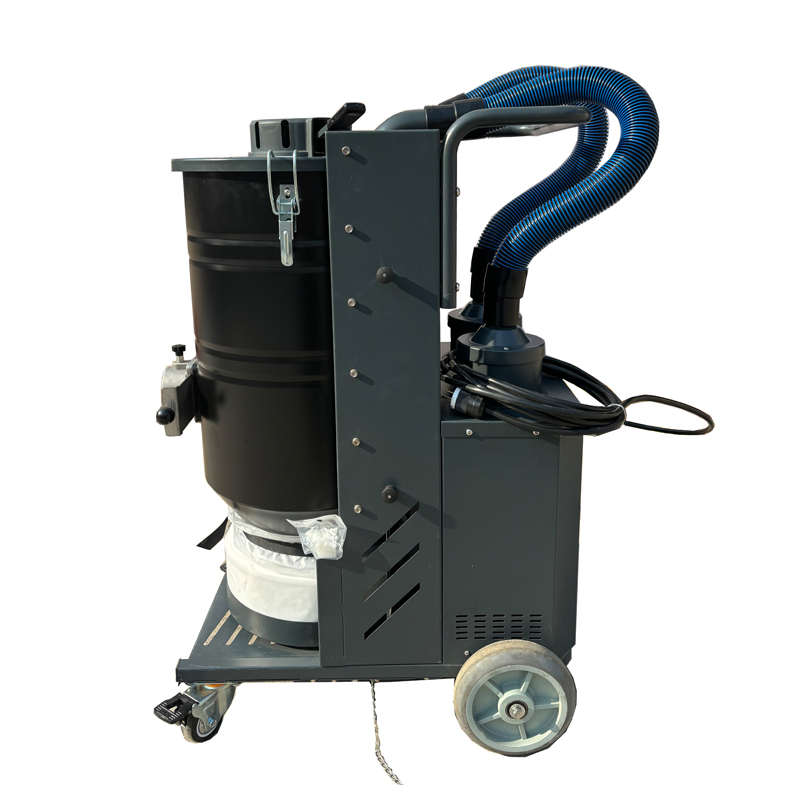

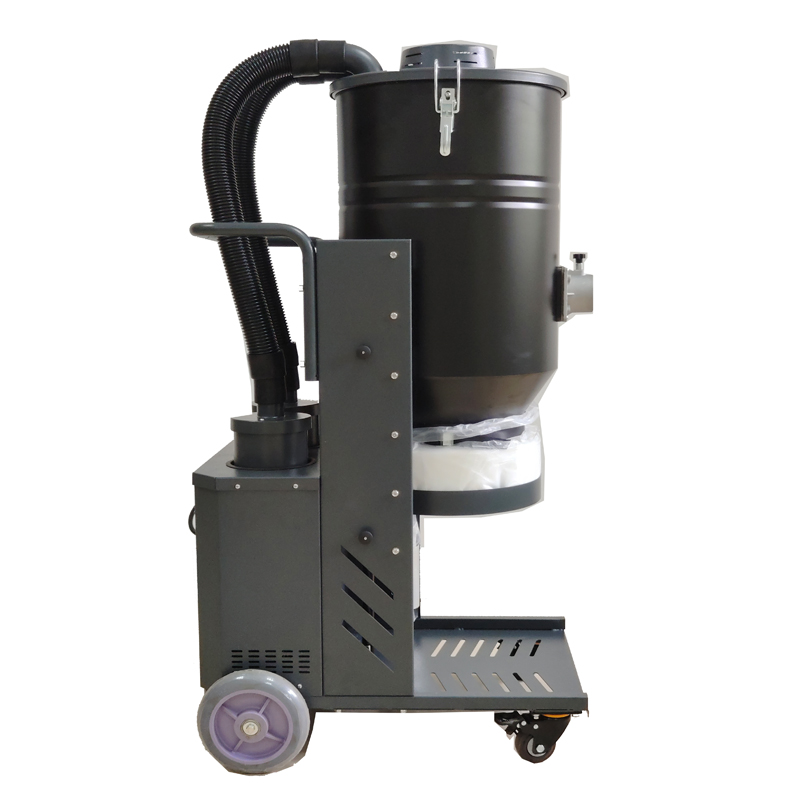

second filtration industrial concrete dust extractor

Product Item: VE201/202/203

Product Manual：second filtration industrial concrete dust extractor

SPECIFICATION

Model	VE201	VE202	VE203
Voltage	220V,50HZ/110V, 60HZ	220V,50HZ/110V, 60HZ	220V,50HZ/110V, 60HZ
Motor power	2.4KW	2.4KW	2.4KW
Max vacuum(mbar)	210	210	210
Max airflow(m3/h)	420	420	420
Cleaning dust way	Manual jet pulse cleaning	Electric motor vibrating cleaning dust	Automatic counter blowing cleaning dust
Collecting dust way	plastic bag D357*22M	plastic bag D357*22M	plastic bag D357*22M
Filter	HEPA H13 filter	HEPA H13 filter	HEPA H13 filter
Filter area (c㎡)	38600	38600	38600
Net weight （kg）	75	79	80

Features:

1. Classic design with rear motor under seal cover, low noise and safe

2. Strong machine body, laser cutting with accurate size, car paint processing technology makes appearance beautiful and durable;

3. It adopts 3pcs 1.2kw single phase carbon brush motors, the motors can be turned on and off separately according to the real working condition, energy conservation and environment protection

4. Unique manual counter blowing cleaning structure, easy to operate, effectively cleaning dust filter bag

Unique continuous bag dust collection structure, can be pulled straight and continue to use, saving time and labor.
