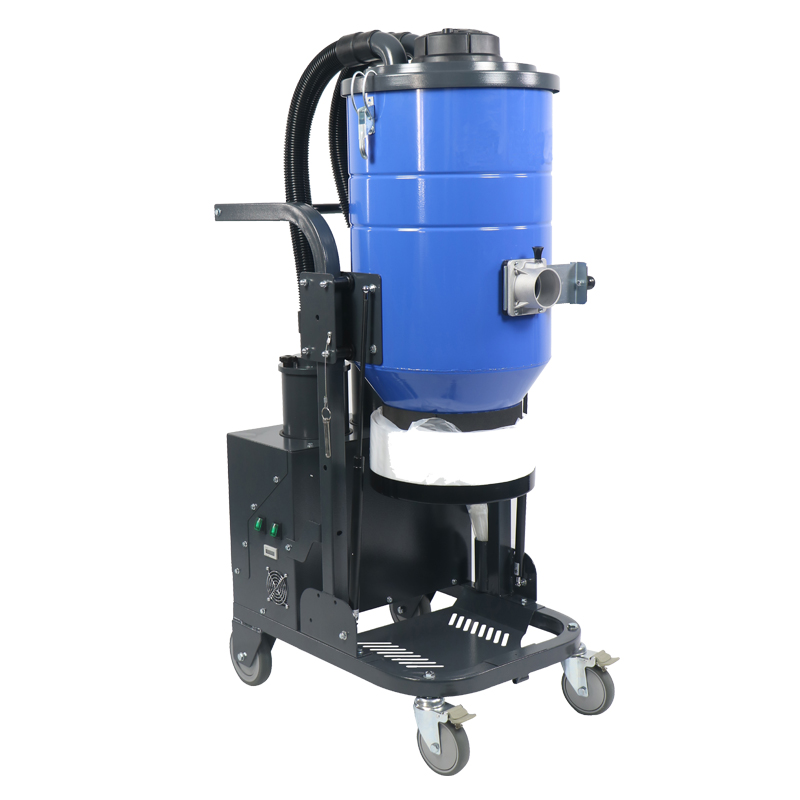

single phase dust extractor

Product Item: VE301/302/303

Product Manual：single phase dust extractor

SPECIFICATION

Model	VE301	VE302	VE303
Voltage	220V,50HZ/110V, 60HZ	220V,50HZ/110V, 60HZ	220V,50HZ/110V, 60HZ
Motor power	3.6KW/3KW	3.6KW/3KW	3.6KW/3KW
Max vacuum(mbar)	230/210	230/210	230/210
Max airflow(m3/h)	600/530	600/530	600/530
Cleaning dust way	Manual jet pulse cleaning	Electric motor vibrating cleaning dust	Automatic counter blowing cleaning dust
Collecting dust way	plastic bag D357*22M	plastic bag D357*22M	plastic bag D357*22M
Filter	HEPA H13 filter	HEPA H13 filter	HEPA H13 filter
Filter area (c㎡)	38600	38600	38600
Net weight （kg）	77	81	83

Features:

1. Classic design with rear motor under seal cover, low noise and safe

2. Unique continuous bag dust collection structure, can be pulled straight and continue to use, saving time and labor.a set dust collection bag length is about 22m and can be used 25times. Dust collection bag material is PE, PE film, light transparent, with moisture, oxygen, acid resistance, alkali resistance,Excellent air-tightness, heat sealing performance

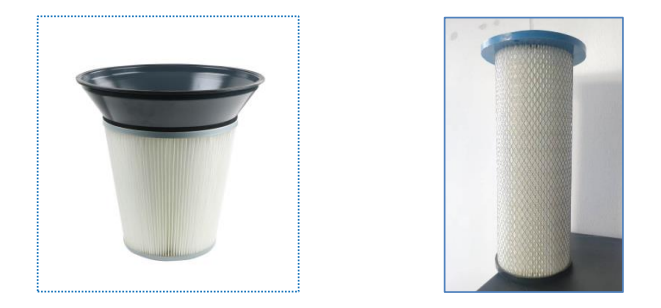

3..Adopt two-stage filter unit, first-order filtering units is use polyester non-woven filter cartridge, the particle size of 3.0 microns of dust filtration precision above 99%, and the secondary filter unit adopts imported from Japan "TORAY" polyester fiber filter paper base material, surface coating line processing, the particle size of 0.3 microns of dust filtration precision above 99%
