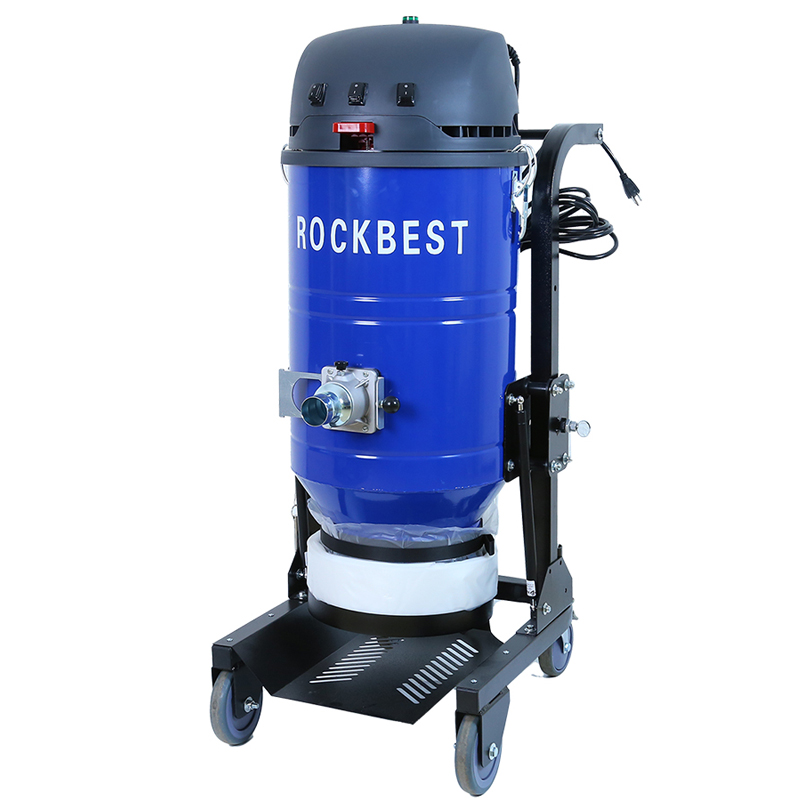

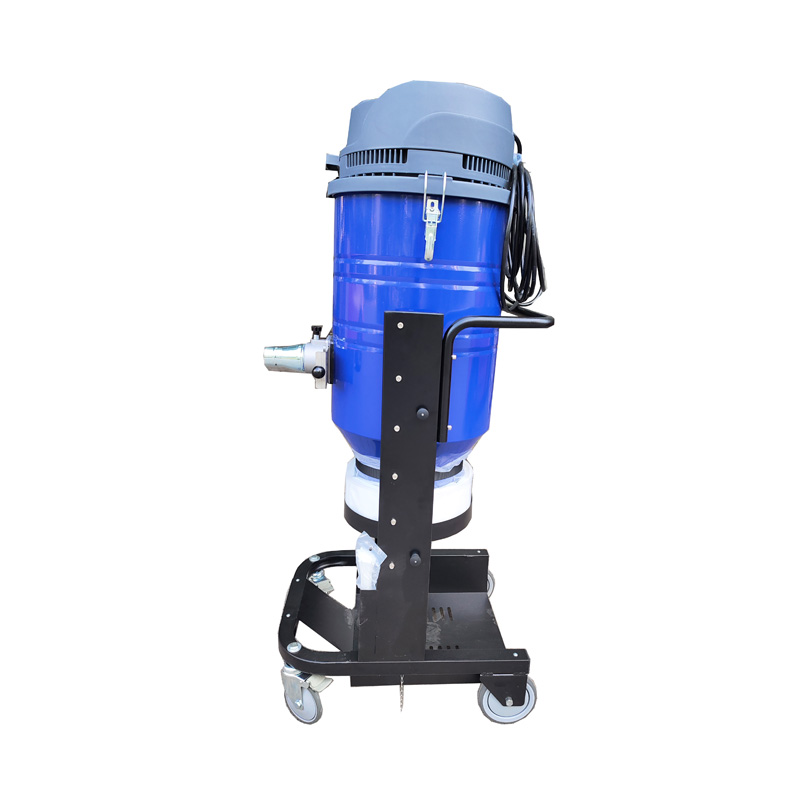

single phase industrial vacuum cleaner

Product Item: VD301/302/303

Product Manual：single phase industrial vacuum cleaner

SPECIFICATION

Model	VD301	VD302	VD303
Voltage	220V,50HZ/110V, 60HZ	220V,50HZ/110V, 60HZ	220V,50HZ/110V, 60HZ
Motor power	3.6KW/3kw	3.6KW/3kw	3.6KW/3kw
Max vacuum(mbar)	230	230	230
Max airflow(m3/h)	600	600	600
Cleaning dust way	Manual jet pulse cleaning	Electric motor vibrating cleaning dust	Automatic counter blowing cleaning dust
Collecting dust way	plastic bag D357*22M	plastic bag D357*22M	plastic bag D357*22M
Filter	HEPA H13 filter	HEPA H13 filter	HEPA H13 filter
Filter area (c㎡)	38600	38600	38600
Net weight （kg）	57	61	63

Features:

1. Height can be adjusted for easy transportation and storage

2. Ametek vacuum motor with independent switches

3. HEPA filter with counter blowing cleaning dust system,preventing dust from clogging the filter and maintain a normal airflow. You dont need to open a vacuum to clean filter and create another hazars.

4. Drop down longopac system for collecting dust, easy handing of grinding residue

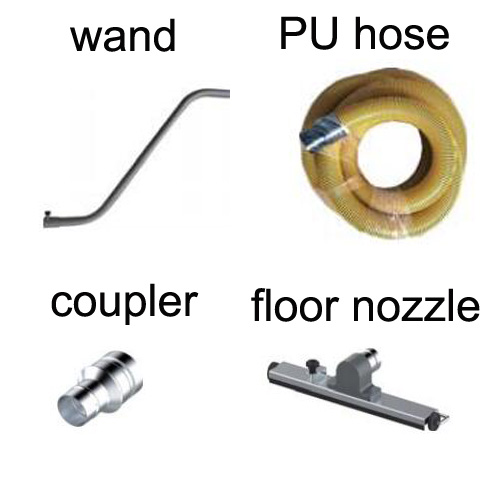

With standard D50 accessories such as hose, wand, dust nozzle and round brush and flat suction head
